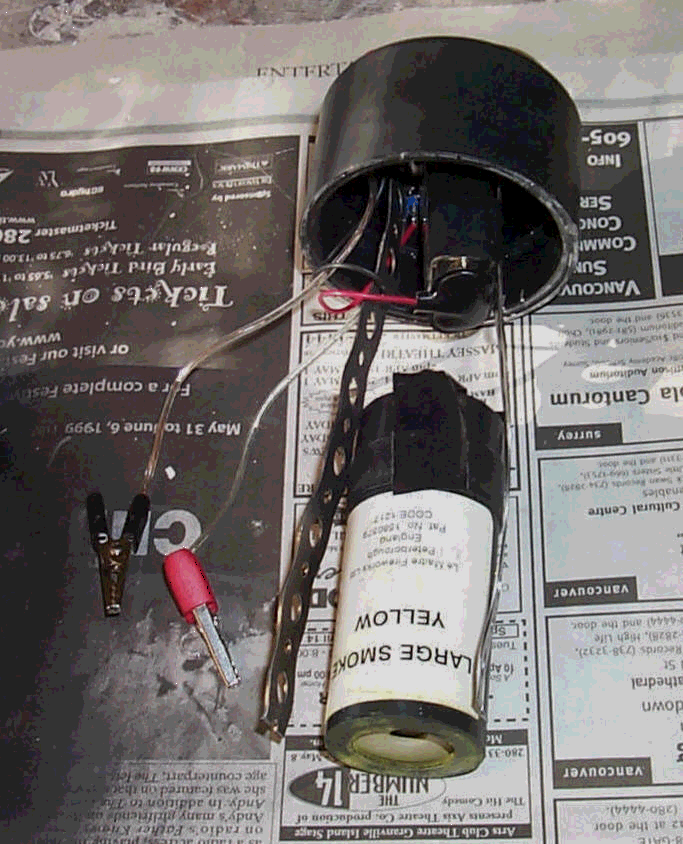

Inside view of the grenade. The firing circuit uses a 9 volt battery connected to a pre-filled, 30 sec. smoke cartridge. Once the grenade is assembled and the arming switch is flipped, pressing the button activates the smoke cartridge -- for this gag, the director wanted yellow smoke
